Torsion Spring Coilers
CNC Spring and wire forming for the production of all types of springs
Benefits FTU
- Significant increase in performance ensures optimized unit costs, especially in large-volume production
- Highest quality, repeat accuracy and energy efficiency thanks to state-of-the-art drive technology
- Application possibilities are more flexible and set-up times are shorter due to WAFIOS WPS 3.2 EasyCam
- High compatibility with existing sets of tools from the FTU series
- Insulation stripping device for the production of copper coils can be used (option)
Types

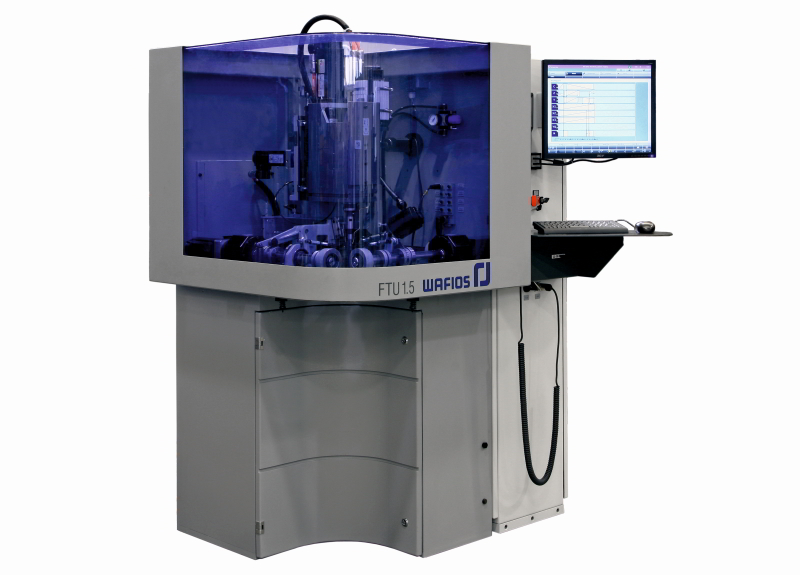

| FTU 1.5 | |
|---|---|
| Spring steel wire diameter (according to DIN EN 10270-1 / -2 and -3) | 0.2 - 1 mm |
| Enameled copper wire diameter | 0.3 - 2 mm |
| Height of spring body / copper coil body | max. 90 mm |
| Diameter of coiling mandrel | d, max. 15 mm |
| Length of revolving first leg | max. 50 mm |
| Max. output, depending on spring shape | 200 Springs/min |

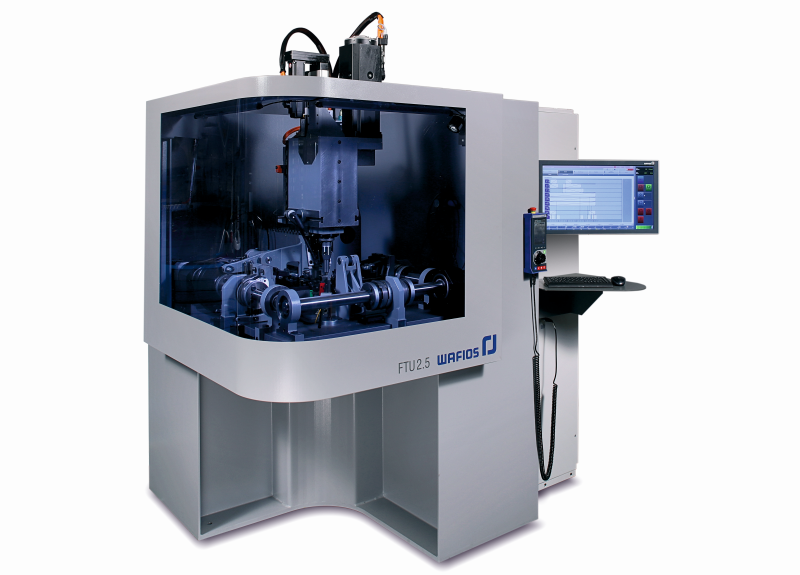

| FTU 2.5 | |
|---|---|
| Spring steel wire diameter (according to DIN EN 10270-1 / -2 and -3) | 0.5 - 2.2 mm |
| Enameled copper wire diameter | 1 - 4 mm |
| Height of spring body / copper coil body | max. 120 mm |
| Diameter of coiling mandrel | d, max. 25 mm |
| Length of revolving first leg | max. 120 mm |
| Max. output, depending on spring shape | 120 Springs/min |
Images
Videos
Loading the player ...
Downloads
Benefits FMU Series
- Very high flexibility and user friendliness through numerous options
- Comfortable programming of complex spring geometries
- High quality standards ensure a zero error production
- High machine availability
Types

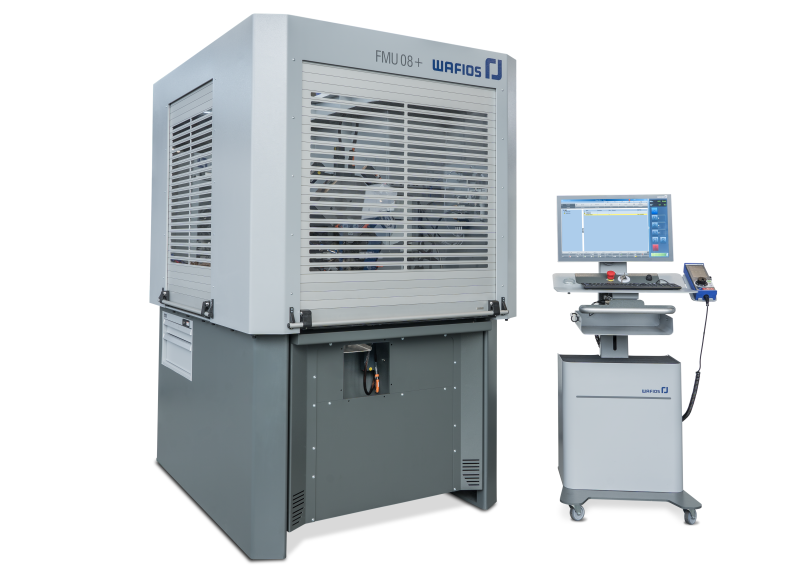

| FMU 08+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 0.2 - 0.8 mm |
| Infeed speed | max. 120 m/min |
| Bend-back clearance | max. 25 mm |
| Stroke, vertical table | +40 / - 80 mm |
| Stroke, horizontal table (option) | +/- 60 mm |
| Stroke, longitudinal table (option) | 100 |
| Stroke, linear unit | ---- |
| Stroke, slide | 34 mm |
| Upgradable to max. CNC axes | 20 |

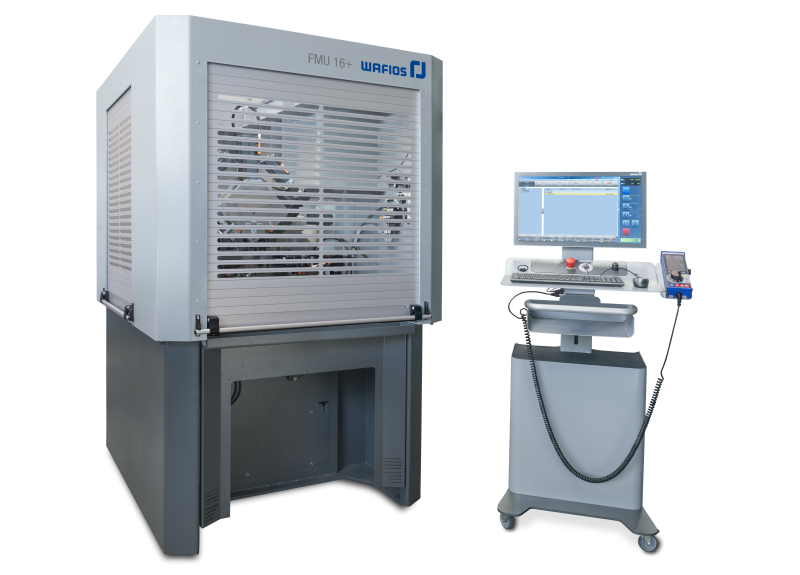

| FMU 16+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 0.4 - 1.6 mm |
| Infeed speed | max. 140 m/min |
| Bend-back clearance | 75 mm |
| Stroke, vertical table | +60 / -100 mm |
| Stroke, horizontal table (option) | +/- 80 mm |
| Stroke, longitudinal table (option) | 110 mm |
| Stroke, linear unit | 320 mm |
| Stroke, slide | 54 mm |
| Upgradable to max. CNC axes | 24 |

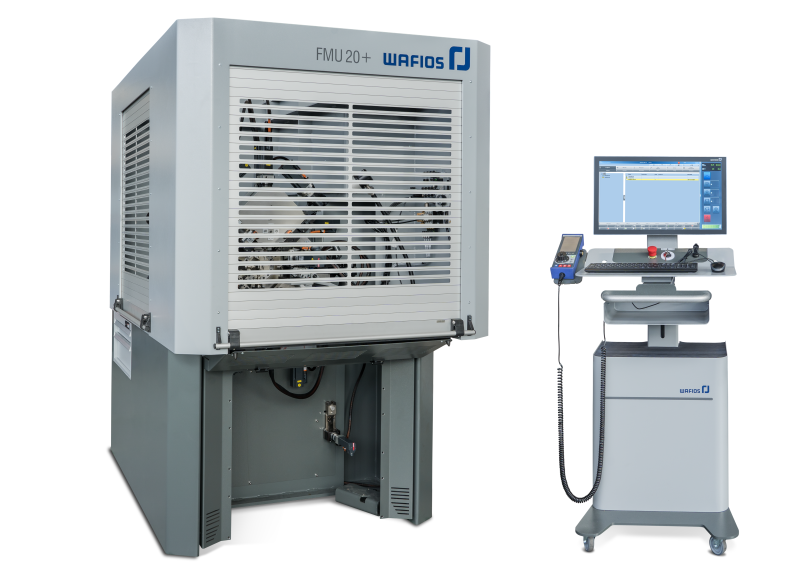

| FMU 20+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 0.4 - 2 mm |
| Infeed speed | max. 140 m/min |
| Bend-back clearance | max. 75 mm |
| Stroke, vertical table | +60 / -100 mm |
| Stroke, horizontal table (option) | +/- 80 mm |
| Stroke, longitudinal table (option) | 110 mm |
| Stroke, linear unit | 320 mm |
| Stroke, slide | 54 mm |
| Upgradable to max. CNC axes | 24 |

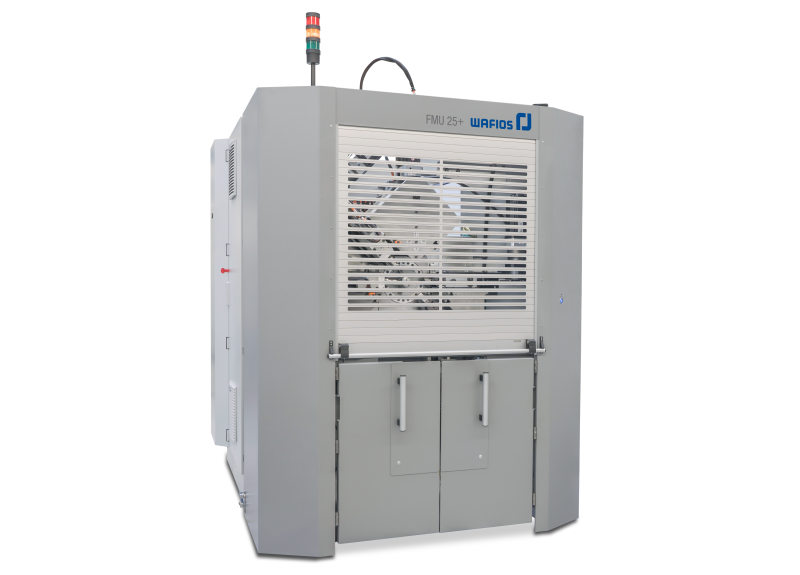

| FMU 25+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 0.8 - 2.5 mm |
| Infeed speed | max. 125 m/min |
| Bend-back clearance | max. 130 mm |
| Stroke, vertical table | +70 / -120 mm |
| Stroke, horizontal table (option) | +/- 90 mm |
| Stroke, longitudinal table (option) | 180 mm |
| Stroke, linear unit | 400 mm |
| Stroke, slide | 80 mm |
| Upgradable to max. CNC axes | 24 |

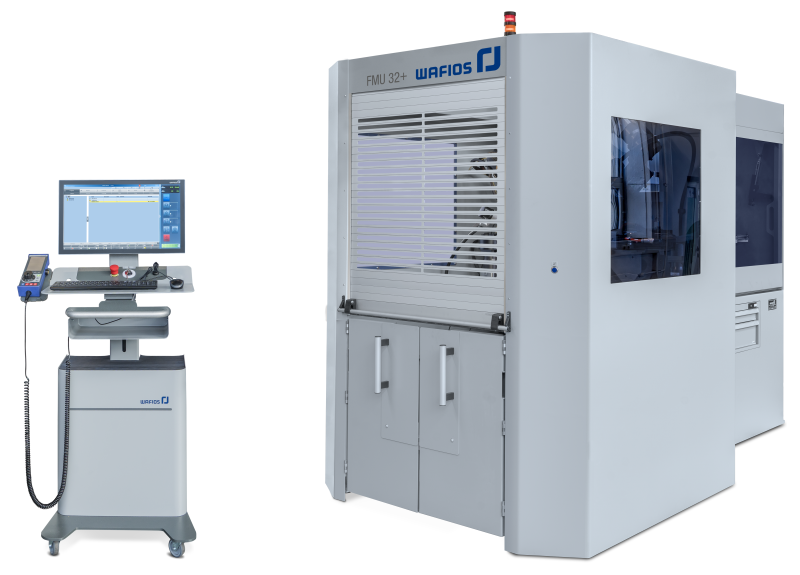

| FMU 32+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 0.8 - 3.2 mm |
| Infeed speed | max. 100 m/min |
| Bend-back clearance | max. 130 mm |
| Stroke, vertical table | +70 / -120 mm |
| Stroke, horizontal table (option) | +/- 90 mm |
| Stroke, longitudinal table (option) | 180 mm |
| Stroke, linear unit | 400 |
| Stroke, slide | 95 mm |
| Upgradable to max. CNC axes | 24 |

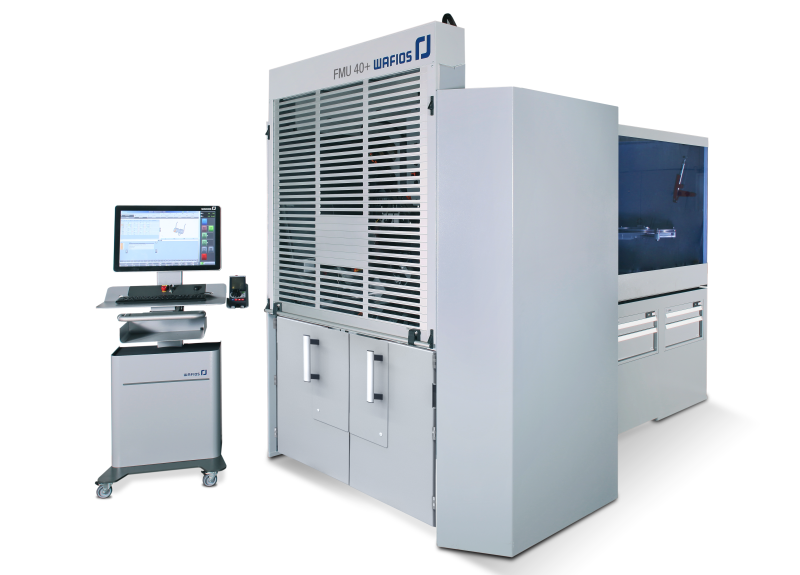

| FMU 40+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 1.8 - 4 mm |
| Infeed speed | max. 80 |
| Bend-back clearance | max. 200 mm |
| Stroke, vertical table | +55 / -175 mm |
| Stroke, horizontal table (option) | +/- 70 mm |
| Stroke, axial table (option) | 260 mm |
| Stroke, linear unit | 750 mm |
| Stroke, slide | 130 mm |
| Upgradable to max. CNC axes | 24 |
| FMU 50+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 1.8 - 5 mm |
| Infeed speed | max. 80 m/min |
| Bend-back clearance | max. 200 mm |
| Stroke, vertical table | +55 / -175 mm |
| Stroke, horizontal table (option) | +/- 70 mm |
| Stroke, axial table (option) | 260 mm |
| Stroke, linear unit | 750 mm |
| Stroke, slide | 130 mm |
| Upgradable to max. CNC axes | 24 |
| FMU 65+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 2.8 - 6.5 mm |
| Infeed speed | max. 70 m/min |
| Bend-back clearance | max. 320 mm |
| Stroke, vertical table | +55 / -175 mm |
| Stroke, horizontal table (option) | +/- 100 mm |
| Stroke, axial table (option) | 340 mm |
| Stroke, linear unit | ---- |
| Stroke, slide | 200 mm |
| Upgradable to max. CNC axes | 24 |
| FMU 80+ | |
|---|---|
| Wire diameter | |
| acc.to DIN-EN 10270 | 2.8 - 8 mm |
| Infeed speed | max. 70 m/min |
| Bend-back clearance | max. 320 mm |
| Stroke, vertical table | +55 / -175 mm |
| Stroke, horizontal table (option) | +/- 100 mm |
| Stroke, axial table (option) | 340 mm |
| Stroke, linear unit | ---- |
| Stroke, slide | 200 mm |
| Upgradable to max. CNC axes | 24 |
Images
Videos
Loading the player ...
Downloads
