Spring End Grinding Machines
Spring End Grinding Machine for Compression Springs
Benefits G Series
- Setup – Connection – Ready to Start Spring End Grinding with WAFIOS!
- Standard machine includes all features needed to meet high demands with regard to quality and output
- Latest drive concept, all downfeed movements are carried out by servoaxes
- Automatic dressing of grinding wheels
- Spring length measuring device guarantees a reliable production process
- Laser sensors for automatic compensation of grinding wheel wear
- Programming Is Easier Than Ever with WAFIOS and EasyWay!
- WPS 3.2 EasyWay
- Geometrical programming
- Clearly structured user interface
- Complete machine and process data control
- WAFIOS Technology: For Those Who Demand the Best!
- Solutions for process optimization (iQs)
- Particulate deflector prevents grinding dust deposits
- Angular dressing of grinding wheels
- Interfaces for subsequent processes
Types

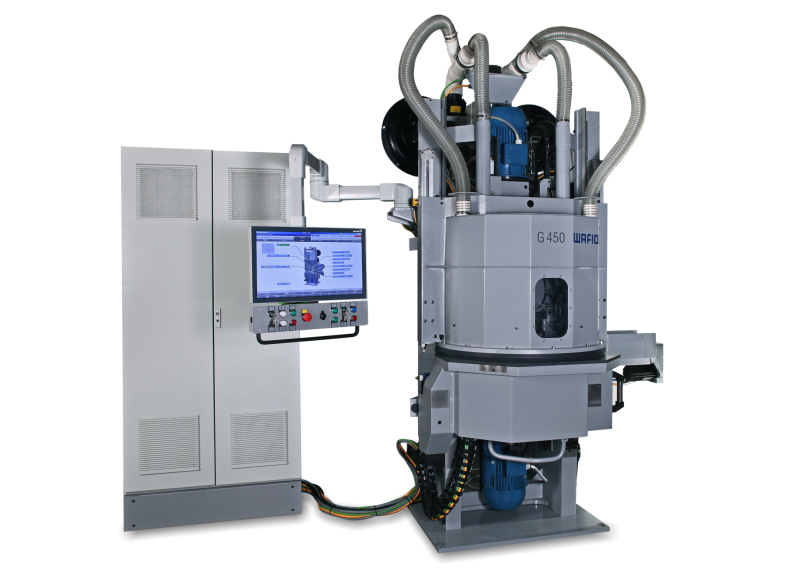

| G 450 | |
|---|---|
| Wire diameter | 1 - 9 mm |
| Outer spring diameter | max. 100 mm |
| Spring length | 10 - 350 mm |
| Grinding wheels | 450x80x100mm (outer ø x height x bore hole ø) |
| Peripheral speed of grinding wheel | 35 - 50 m/s (infinitely adjustable) |
| Installed power of grinding spindles | ca. 2 x 7,5 kW |
| Loading plate speed | 0.2 - 50 1/min (infinitely adjustable) |
| Number of loading plates | 1 |
| Loading plate diameter | 580 mm* |
| Reception holes, loading plate** | 50 mm |
| Space required (l x w x h) | 2100 x 2200 x 2900 mm (infinitely adjustable) |
| Weight | appr. 3600 Kg (infinitely adjustable) |
| * Loading plate size can be selected, conversion not possible! | |
| ** Different diameters are available | |
| G 450 | |
|---|---|
| Wire diameter | 1 - 9 mm |
| Outer spring diameter | max. 100 mm |
| Spring length | 10 - 350 mm |
| Grinding wheels | 450x80x100mm (outer ø x height x bore hole ø) |
| Peripheral speed of grinding wheel | 35 - 50 m/s (infinitely adjustable) |
| Installed power of grinding spindles | appr. 2 x 7,5 kW |
| Loading plate speed | 0.2 - 50 1/min (infinitely adjustable) |
| Number of loading plates | 1 |
| Loading plate diameter | 740 mm* |
| Reception holes, loading plate** | 60 mm |
| Space required (l x w x h) | 2200 x 2200 x 2900 mm (infinitely adjustable) |
| Weight | appr. 3625 Kg (infinitely adjustable) |
| * Loading plate size can be selected, conversion not possible! | |
| ** Different diameters are available | |
| G 450 | |
|---|---|
| Wire diameter | 1 - 9 mm |
| Outer spring diameter | max. 100 mm |
| Spring length | 10 - 350 mm |
| Grinding wheels | 450x80x100mm (outer ø x height x bore hole ø) |
| Peripheral speed of grinding wheel | 35 - 50 m/s (infinitely adjustable) |
| Installed power of grinding spindles | appr. 2 x 7,5 kW |
| Loading plate speed | 0.2 - 50 1/min (infinitely adjustable) |
| Number of loading plates | 2 |
| Loading plate diameter | 580 mm |
| Reception holes, loading plate** | 50 mm |
| Space required (l x w x h) | 2400 x 2200 x 2900 mm (without extraction unit) |
| Weight | appr. 4500 Kg (without extraction unit) |
| ** Different diameters are available | |
| G 660 | |
|---|---|
| Wire diameter | 2 - 12 mm |
| Outer spring diameter | max. 140 mm |
| Spring length | 12 - 350 mm |
| Grinding wheels | 660x100x150mm (outer ø x height x bore hole ø) |
| Peripheral speed of grinding wheel | 35 - 50 m/s (stufenlos wählbar) |
| Installed power of grinding spindles | appr. 2 x 11 kW |
| Loading plate speed | 0.2 - 50 1/min (infinitely adjustable) |
| Number of loading plates | 1 |
| Loading plate diameter | 740 mm |
| Reception holes, loading plate** | 60 mm |
| Space required (l x w x h) | 3000 x 3000 x 3000 mm (without dust extraction) |
| Weight | appr. 6300 Kg |
| ** Different diameters are available | |
| G 660 | |
|---|---|
| Wire diameter | 2 - 12 mm |
| Outer spring diameter | max. 140 mm |
| Spring length | 12 - 350 mm |
| Grinding wheels | 660x100x150mm (outer ø x height x bore hole ø) |
| Peripheral speed of grinding wheel | 35 - 50 m/s (infinitely adjustable) |
| Installed power of grinding spindles | appr. 2 x 11 kW |
| Loading plate speed | 0.2 - 50 1/min (infinitely adjustable) |
| Loading plate speed | 2 |
| Loading plate diameter | 740 mm |
| Reception holes, loading plate** | 60 mm |
| Space required (l x w x h) | 2400 x 3600 x 3000 mm (without dust extraction) |
| Weight | appr. 7200 Kg |
| ** Different diameters are available | |
