Pay-Off

Electronically controlled pay-off for wire and tube (spools and bundles)

Benefits Spring Coilers

Product quality increased by optimal interaction of machine and pay-off
Production enhanced by shortened downtimes and higher machine dynamics
Enhanced flexibility thanks to versatile options
Numerous simplifications in handling increase operator comfort
Security concept fulfils the most modern of production standards

Types

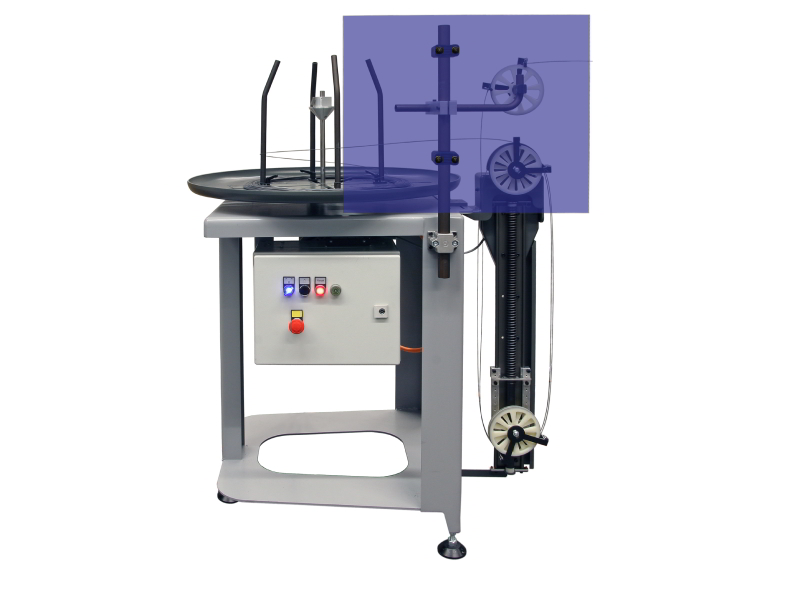

AHT 1
Wire diameter	0.1 - 1 mm
Load capacity	150 kg
Min. inner dia. of coiled material	100 mm
Max. outer dia. of coiled material	900 mm
Max. coil height	400 mm
Power	0.75 kW
Maximum speed	190 1/min
Coil table height	950 mm
Machinery	FSE 15, FUL 16, FMU 0.8, FTU 1.5

AHT 1HS
Wire diameter	0.12 - 0.8 mm
Load capacity	150 kg
Min. inner dia. of coiled material	---
Max. outer dia. of coiled material	760 mm
Max. coil height	300 mm
Power	2.2 kW
Maximum speed	330 1/m
Coil table height	950 mm
Machinery	FUL 16

AHT 2
Wire diameter	0.2 - 3 mm
Load capacity	500 kg
Min. inner dia. of coiled material	200 mm
Max. outer dia. of coiled material	900 mm
Max. coil height	400 mm
Power	1.5 kW
Maximum speed	130 1/min
Coil table height	900 mm
Machinery	FUL 26, FUL 36, F2, F3, FMU 16, FMU 25, FMK 2, FTU 2.2B

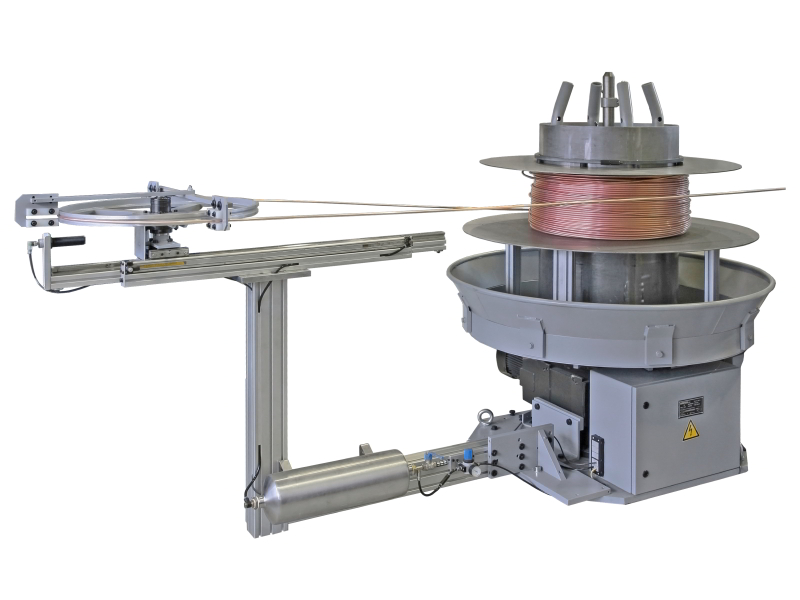

AHP 1
Load capacity	750 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	850/1000 mm
Max. coil height	800 mm
Power	2.2 kW
Nominal speed	92 1/min
Coil table height	560 mm
Machinery	F2, F3, FUL 26, FUL 36, FMU 16, 25, FMK 2, 3, FTU 1.5, 2.2B
* Dependent on diameter of wire removal guide (mm)

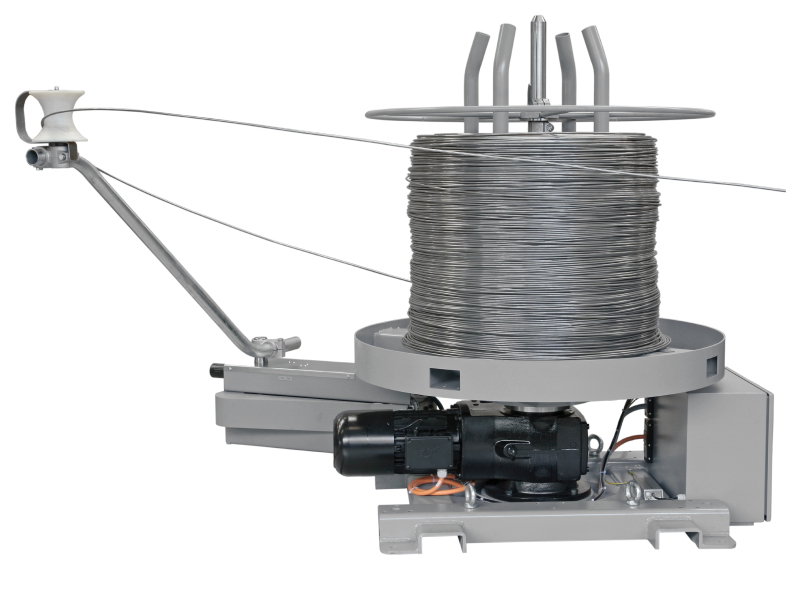

AHP 2
Load capacity	1500 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1000/1300 mm*
Max. coil height	800 mm**
Power	4.0 kW
Nominal speed	60 1/min
Coil table height	560 mm
Machinery	F3, F4, F6, FUL 36, FUL 46, 56, 75, FMU 25, 40, FMK 2, 3, SNA 22, 33, WSR 3, 22
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

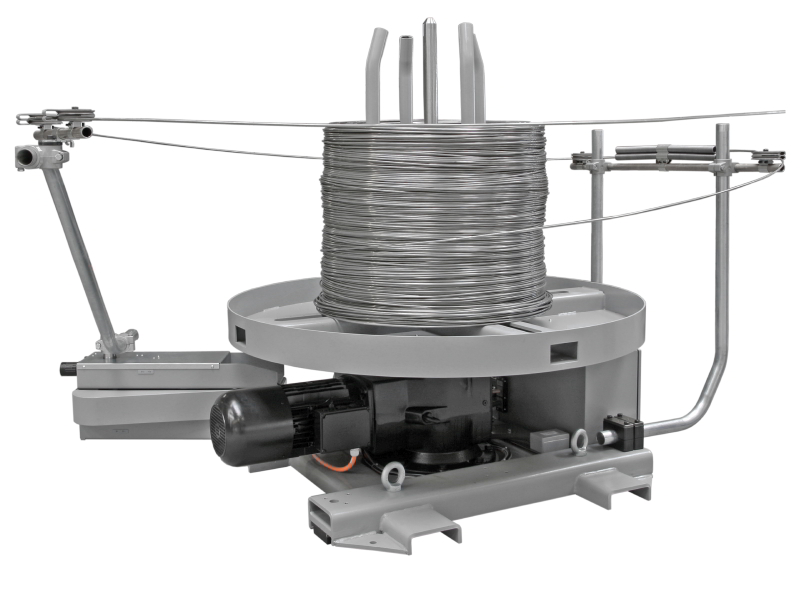

AHP 4
Load capacity	3000 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1300/1800 mm *
Max. coil height	800 mm**
Power	5.5 kW
Nominal speed	62 1/mm
Coil table height	622 mm
Machinery	F4, F6, FUL 56, 75, 86, FMU 40, 65, 80, SNA 22, 33, WSR 3, 22
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

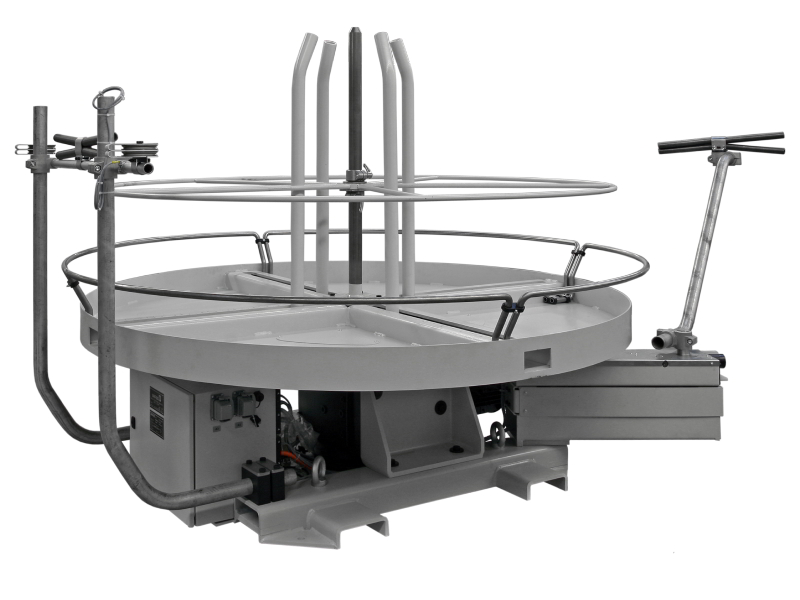

AHP 5
Load capacity	2200 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1800/2300 mm *
Max. coil height	800 mm**
Power	5.5 kW
Nominal speed	36 1/min
Coil table height	622 mm
Machinery	FSE 93
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

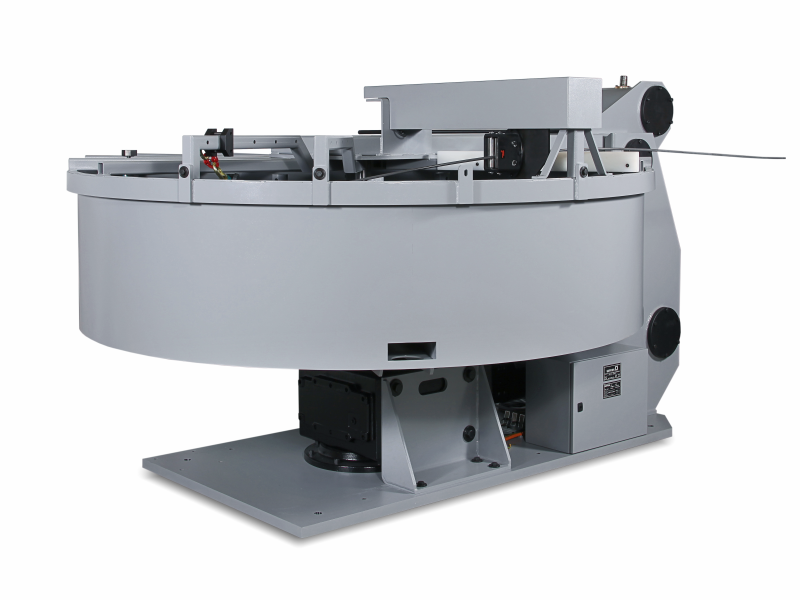

GH 46
Load capacity	3000 Kg
Min. inner dia. of coiled material	600 mm
Max. outer dia. of coiled material	2300 mm
Max. coil height	500 mm
Power	5.5 KW
Nominal speed	20 1/min
Coil table height	725 mm
Machinery	FUL 203, FUL 183, FUL 175, FUL 166, FSE 143, FMB 1

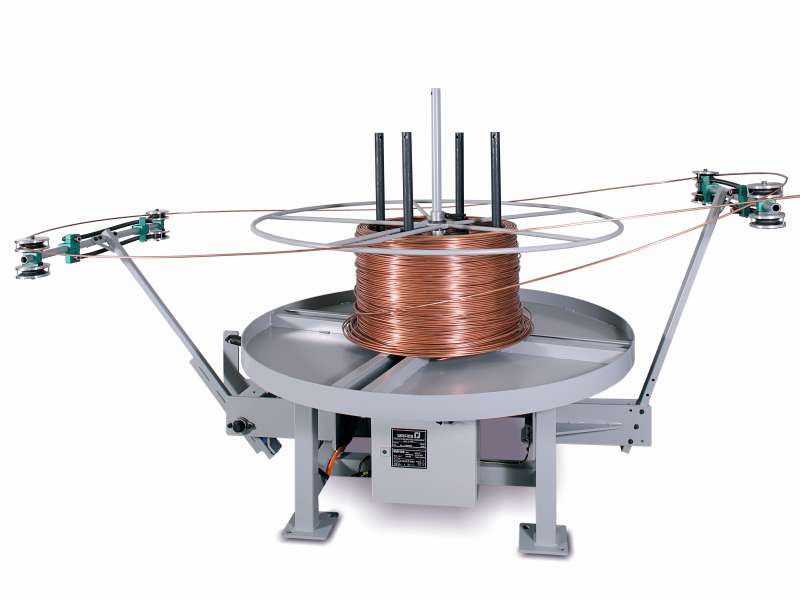

H3
Load capacity	1200 kg
Min. inner dia. of coiled material	250 mm
Max. outer dia. of coiled material	1300 mm
Max. coil height	800 mm
Carrier plate diameter	1500 mm
Power	2,2 kW
Nominal speed	65 1/min
Machinery	F2, F 30, FMU 25, FMU 32

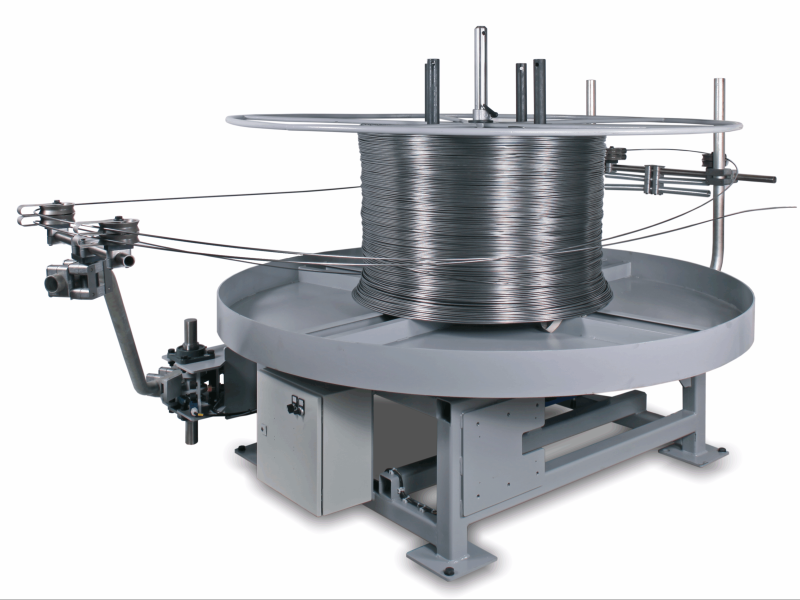

H7
Load capacity	2200 Kg
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1800 mm
Max. coil height	800 mm
Power	4.0 KW
Nominal speed	53 1/min
Machinery	F4, F6, FMU 40, FMU 50, FMU 65

Images

Downloads

AHP_Series.pdf (196 KB)

Residual_Weight_Detection_of_the_Wire_Coil.pdf (127 KB)

AHT_Series.pdf (106 KB)

H3-H7.pdf (74 KB)

GH_46.pdf (65 KB)

Benefits Chain Production

Product quality increased by optimal interaction of machine and pay-off
Production enhanced by shortened downtimes and higher machine dynamics
Numerous simplifications in handling increase operator comfort
Security concept fulfils the most modern of production standards

Types

AHP 4
Load capacity	3000/2200 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1300/1800 mm *
Max. coil height	800 mm**
Power	5.5 kW
Nominal speed	62 1/mm
Coil table height	622 mm
Machinery	KEB 4.2, KEB 7.2, KER 4.2, KER 5.2, KER 7.2
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

Images

Downloads

Benefits Wire Benders

Product quality increased by optimal interaction of machine and pay-off
Production enhanced by shortened downtimes and higher machine dynamics
Enhanced flexibility thanks to versatile options
Numerous simplifications in handling increase operator comfort
Security concept fulfils the most modern of production standards

Types

AHP 1
Load capacity	750/600 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	850/1000 mm*
Max. coil height	800 mm**
Power	2.2 kW
Nominal speed	92 1/min
Coil table height	560 mm
Machinery	BMS 2
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

AHP 2
Load capacity	1500/1200 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1000/1300 mm**
Max. coil height	800 mm**
Power	4.0 kW
Nominal speed	60 1/min
Coil table height	560 mm
Machinery	B/BM Series, BMU Series, BMS 2, BMS 31, 5, BT 3.2, 3.4
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

AHP 4
Load capacity	3000/2200 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1300/1800 mm*
Max. coil height	800 mm**
Power	5.5 kW
Nominal speed	62 1/min
Coil table height	622 mm
Machinery	B/BM Series, BMU Series, BMS 2, BMS 31, BT 3.2, 3.4, 5.2
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

H3
Load capacity	1200 kg
Min. inner dia. of coiled material	250 mm
Max. outer dia. of coiled material	1300 mm
Coil table height	800 mm
Carrier plate diameter	1500 mm
Power	2,2 kW
Nominal speed	65 1/min
Machinery	B3, B 36, BM 36, BT 3.2, BMS 25, BMS 31, BMS 36 (BT 3.4 on request)

H7
Load capacity	2200 kg
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1800 mm
Coil table height	800 mm
Carrier plate diameter	2000 mm
Power	4 KW
Nominal speed	53 1/min
Machinery	B 36, B4, B5, BM 40, BM 50, (BT 5.2 on request)

SPH 1000
Profi led copper material	ca. 12,0 – 3,0 x 25,0 – 6,0 mm
Flat spring steel material, max 1200 N/mm²	ca. 2,0 – 3,5 x 4,0 – 10,0 mm
Round steel wire material, smooth	ca. 6,0 – 12,0 mm
Load capacity	max. 1.200 kg
Infeed speed	max. 120 m/min
Outer wire spool dia.	max. 800 – 1.000 mm
Wire spool width	max. 680 – 700 mm
Wire spool bore hole	min. 80 mm
Wire exit height	ca. 1.300 – 1.400 mm
Wire exit height	ca. 1,1 kW
Weight without wire	ca. 800 kg (depending on equipment)
Machinery	BMF 60

Images

AHP 1

AHP 2

AHP 4

Downloads

AHP_Series.pdf (196 KB)

Residual_Weight_Detection_of_the_Wire_Coil.pdf (127 KB)

AHT_Series.pdf (106 KB)

H3-H7.pdf (74 KB)

Benefits Straightening Machines

Product quality increased by optimal interaction of machine and pay-off
Production enhanced by shortened downtimes and higher machine dynamics
Enhanced flexibility thanks to versatile options
Numerous simplifications in handling increase operator comfort
Security concept fulfils the most modern of production standards

Types

AHP 1
Load capacity	750 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	850/1000 mm*
Max. coil height	800 mm**
Power	2.2 kW
Nominal speed	92 1/min
Coil table height	560 mm
Lightweight arm, simple guide	R 23*, 23S, 36S
Lightweight arm, double-pass deflection	R 13
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

AHP 2
Load capacity	1500 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1000/1300 mm*
Max. coil height	800 mm**
Power	4.0 kW
Nominal speed	60 1/min
Coil table height	560 mm
Lightweight arm, double-pass deflection	R 13,R 23, R 36
Heavyweight arm, simple guide	R 36, R 45, R 45B
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

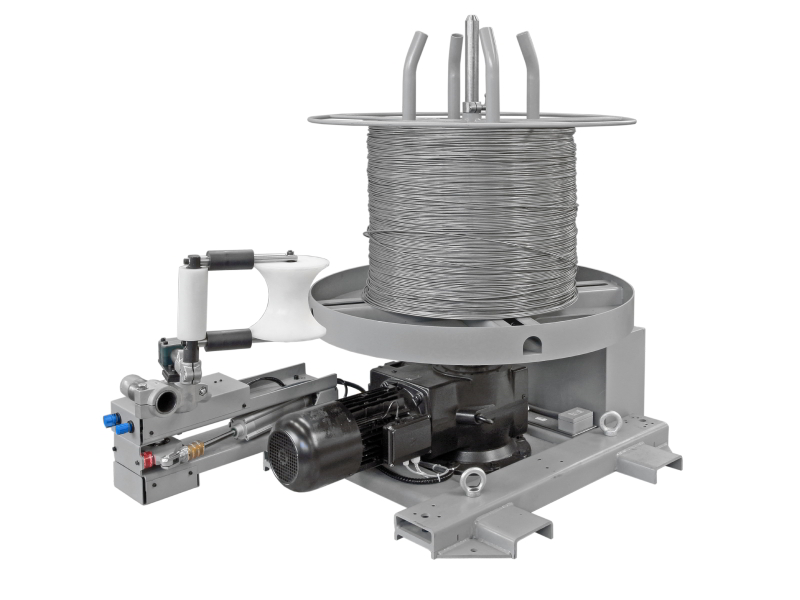

AHP 3
Load capacity	1200 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1300 mm*
Max. coil height	800 mm**
Power	5.5 kW
Nominal speed	107 1/min
Coil table height	622 mm
Lightweight arm, simple guide	R23, 23S, 36S
Heavyweight arm, simple guide	R 36B, 45, 45B
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

AHP 4
Load capacity	3000 kg*
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1300/1800 mm*
Max. coil height	800 mm*
Power	5.5 kW
Nominal speed	62 1/min
Coil table height	622 mm
Lightweight arm, simple guide	R 35
Heavyweight arm, simple guide	R 36B, 45, 45B
* Dependent on diameter of wire removal guide (mm)
** Optional various heights

H3V
Load capacity	1200 kg
Min. inner dia. of coiled material	250 mm
Max. outer dia. of coiled material	1300 mm
Coil table height	800 mm
Carrier plate diameter	1500 mm
Power	2,2 kW
Nominal speed	65 1/min
Machinery	RE 30

H7
Load capacity	2200 kg
Min. inner dia. of coiled material	300 mm
Max. outer dia. of coiled material	1800 mm
Coil table height	800 mm
Coil table height	2000 mm
Power	4 KW
Nominal speed	53 1/min
Machinery	RE 30, RE 40, RE 50

Images

Downloads

AHP_Series.pdf (196 KB)

Residual_Weight_Detection_of_the_Wire_Coil.pdf (127 KB)

AHT_Series.pdf (106 KB)

H3-H7.pdf (74 KB)
