Multiple-Head Wire Benders
CNC Multiple-head bending machines for the production of two- and three-dimensional parts
Benefits BMS
- CNC-controlled rotary gripper with large bending clearance
- Highly dynamic rotary straightening system - for highest straightening quality
- CNC-controlled wire loader
- Fast CNC-controlled cut
- Short set-up times due to iQ functions
Types

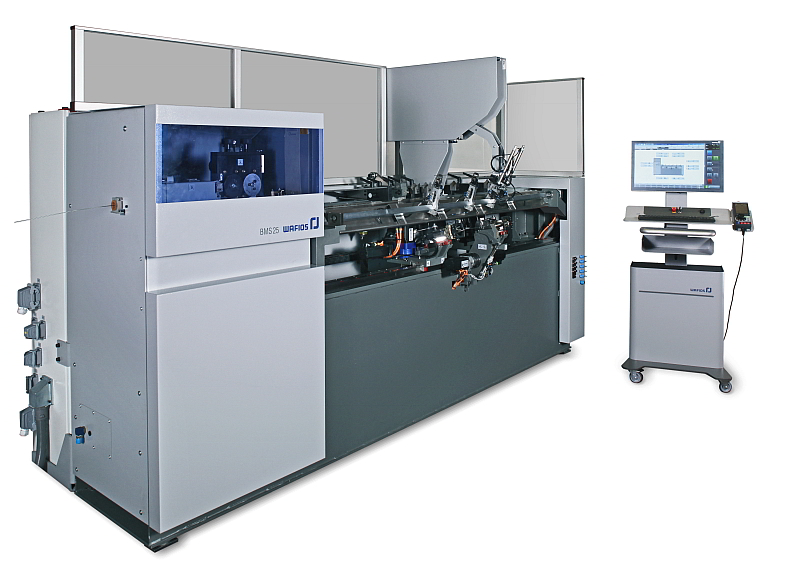

| BMS 25 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 1.5 - 2.5 mm |
| 600 N/mm² | 1.5 - 3.5 mm |
| Rod length | 250 - 2000 mm |
| Distance of bending heads to center of tool | 75 - 1900 mm |
| Rotary angle, rotary gripper | endless |
| Rotary angle, bending and mandrel axis | endless |
| Bending torque | max. ca. 32 Nm |
| Bending head, up/down stroke | max. 25 mm |
| Bending head, laterally displaceable (B axis) | - |
| Cut | Pneumatisch |

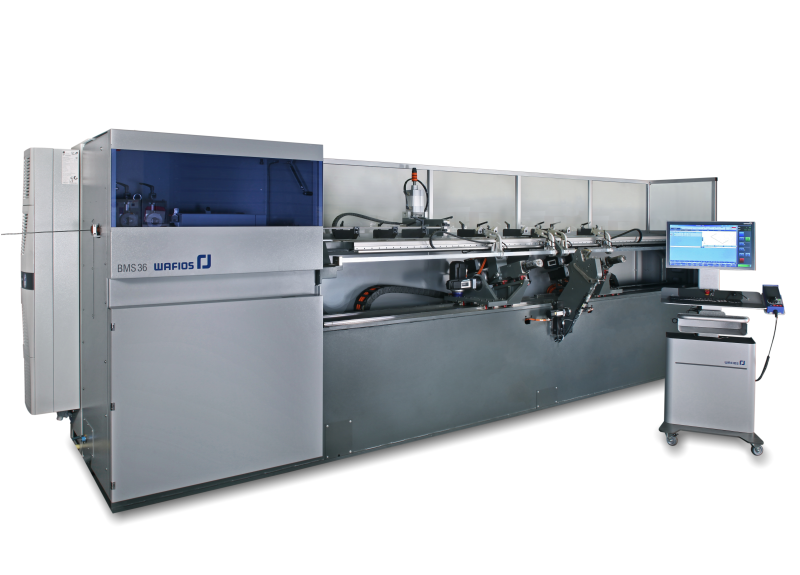

| BMS 36 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 2 - 3.6 mm |
| 600 N/mm² | 2 - 6.5 mm |
| Rod length | 320 - 4000 mm |
| Distance of bending heads to center of tool | 138 - 3500 mm |
| Rotary angle, rotary gripper | endless |
| Rotary angle, bending and mandrel axis | endless |
| Bending torque | max. ca. 250 Nm |
| Bending head, up/down stroke | max. 40 mm |
| Bending head, laterally displaceable (B axis) | Option |
| Cut | Pneumatisch |

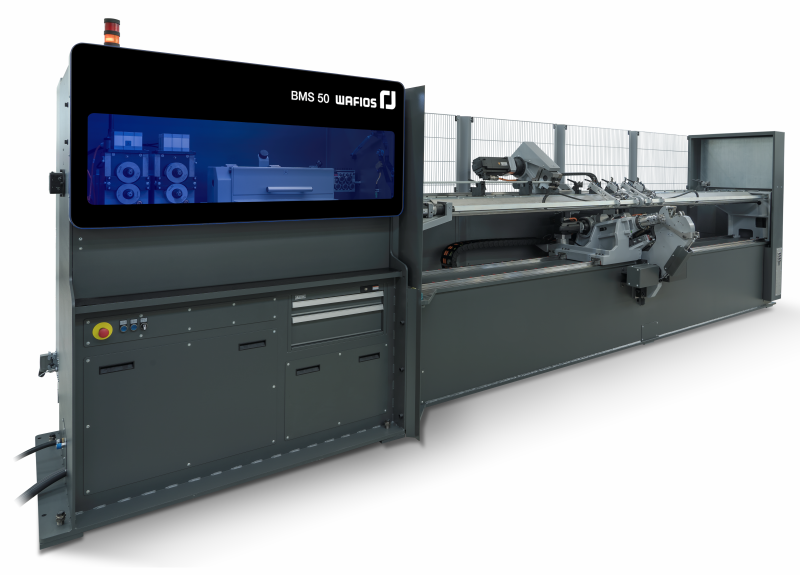

| BMS 50 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 4 - 5 mm |
| 600 N/mm² | 4 - 10 mm |
| Rod length | 320 - 4000 mm |
| Distance of bending heads to center of tool | 160 - 3750 mm |
| Rotary angle, rotary gripper | endless |
| Rotary angle, bending and mandrel axis | endless |
| Bending torque | max. ca. 360 Nm |
| Bending head, up/down stroke | max. 50 mm |
| Bending head, laterally displaceable (B axis) | - |
| Cut | CNC-Achse |
Images
Videos
Loading the player ...
Loading the player ...
Downloads
Benefits BT Series
- High output due to independently operating bending heads and new control concept WPS 3.2 EasyWay
- Highest process safety, further development of the successful and widely installed predecessor model BT
- High efficiency, especially when producing asymmetrical parts with many bends
- High flexibility, gripper holds part in a defined Position ready for succeeding operations or integration in production sequences
Types

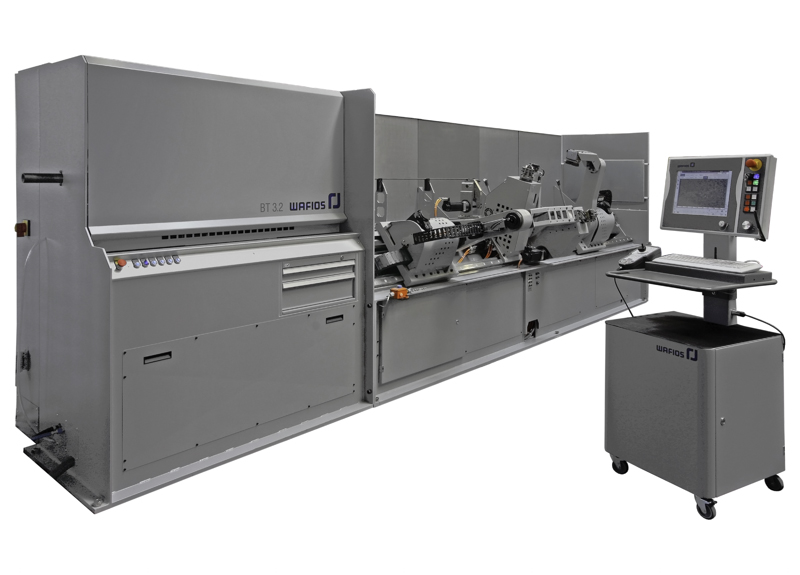

| BT 3.2 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 2 - 4 mm (4,3 mm reinforced version) |
| 1200 N/mm² | 2 - 4.5 mm |
| 600 N/mm² | 2 - 6.5 mm |
| Infeed speed | 120 m/min |
| Rod length | 200 - 2000 mm |
| Distance towards center (Standard) | min. 80 - 120 mm (bent part) |
| With special equipment | min. 25 mm (bent part) |
| Swivel angle of swivel arm max. | 180° |
| Swivel angle of gripper | 360° |
| Programming system | WPS 3.2 EasyWay |
| Bending units | 2 |
| Bending moment max. | ca. 250 Nm |
| BT 3.4 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 2 - 4 mm (4,3 mm reinforced version) |
| 1200 N/mm² | 2 - 4.5 mm |
| 600 N/mm² | 2 - 6.5 mm |
| Infeed speed | 120 m/min |
| Rod length | 200 - 2000 mm |
| Distance towards center (Standard) | min. 80 - 120 mm (bent part) |
| With special equipment | min. 25 mm (bent part) |
| Swivel angle of swivel arm max. | 180° |
| Swivel angle of gripper | 360° |
| Programming system | WPS 3.2 EasyWay |
| Bending units | 4 |
| Bending moment max. | ca. 250 Nm |

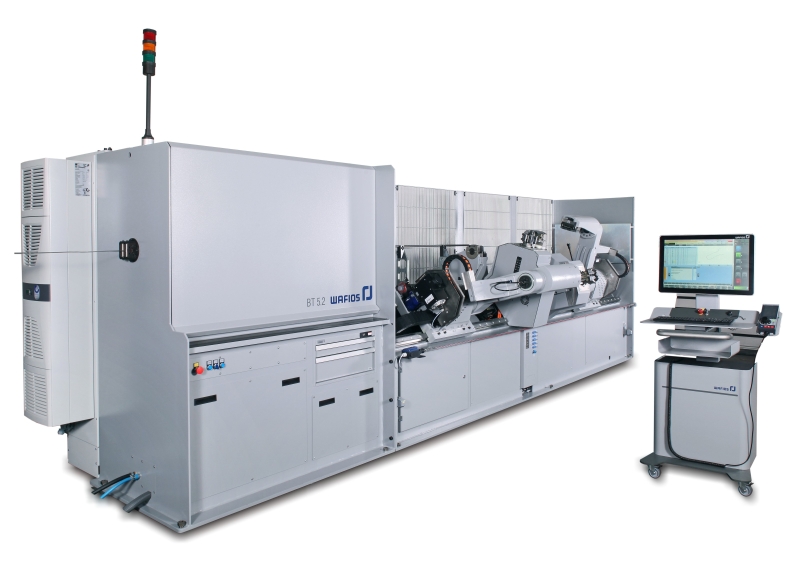

| BT 5.2 | |
|---|---|
| Wire diameter | |
| 1900 N/mm² | 4 - 5 mm |
| 1200 N/mm² | 4 - 6 mm |
| 600 N/mm² | 4 - 10 mm |
| Infeed speed | 120 m/min |
| Rod length | 200 - 2000 mm |
| Distance towards center (Standard) | min. 80 - 120 mm (bent part) |
| With special equipment | min. 35 mm (bent part) |
| Swivel angle of swivel arm max. | 180° |
| Swivel angle of gripper | 360° |
| Programming system | WPS 3.2 EasyWay |
| Bending units | 2 |
| Bending moment max. | ca. 520 Nm |
Images
Videos
Loading the player ...
Downloads
