Chain Welding Machines
Chain manufacturing machines
Benefits KEH Series
- Robust machine design for the production of high-strength chains over a long period of time
- Continuous welding of all chain links in one cycle (link by link)
- Complete deburring of welding bead
- KEH 4.2, KEH 5.2 and KEH 7.2 have a greater output because of individually adjustable rpm numbers for welding, deburring and transport
Types
| KEH 3.2 | |
|---|---|
| Wire diameter | 0 - 0 |
| at max. 1000 N/mm² | 3 - 5 mm |
| at max. 900 N/mm² | 3 - 6 mm |
| Output, chain links | 90 - 65 pcs./min |

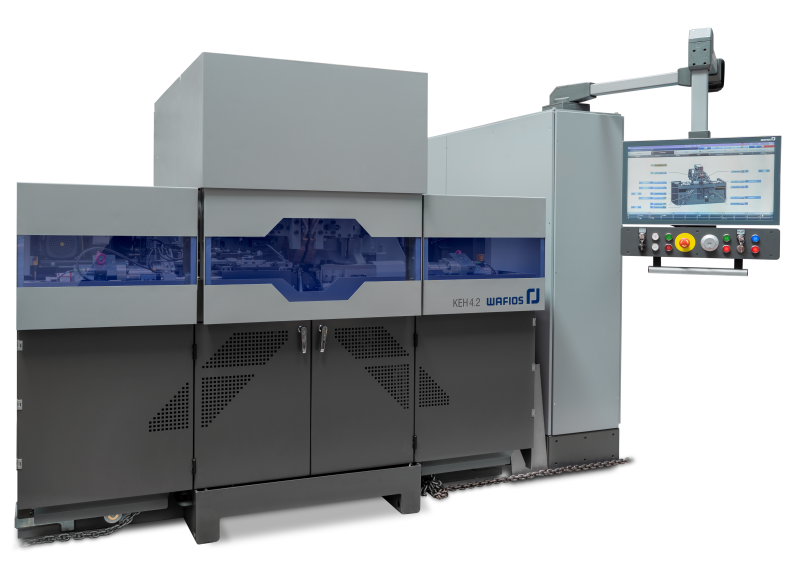

| KEH 4.2 | |
|---|---|
| Wire diameter | |
| at max. 900 N/mm² | 5 - 10 mm |
| at max. 1000 N/mm² | 5 - 9 mm |
| Inside length of links (pitch) | 13.5 - 50 mm |
| Output, chain links | 75 - 50 pcs./min |
| KEH 5.2 | |
|---|---|
| Wire diameter | |
| at max. 900 N/mm² | 8 - 13 mm |
| at max. 1000 N/mm² | 8 - 12 mm |
| Inside length of links (pitch) | 21.5 - 65 mm |
| Output, chain links | 55 - 34 pcs./min |

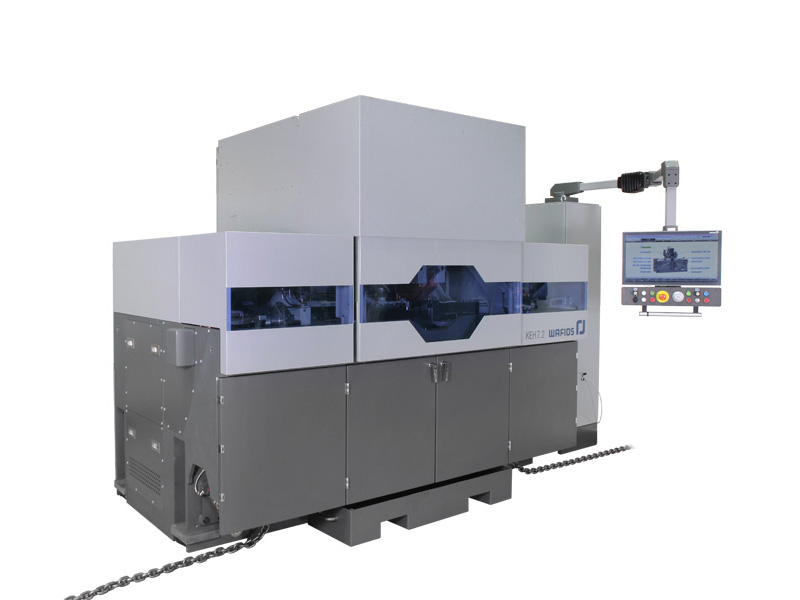

| KEH 7.2 | |
|---|---|
| Wire diameter | |
| at max. 1000 N/mm² | 10 - 16 mm |
| at max. 500 N/mm² | 10 - 18 mm |
| Inside length of links (pitch) | 27 - 100 mm |
| Output, chain links | 45 - 18 pcs./min |

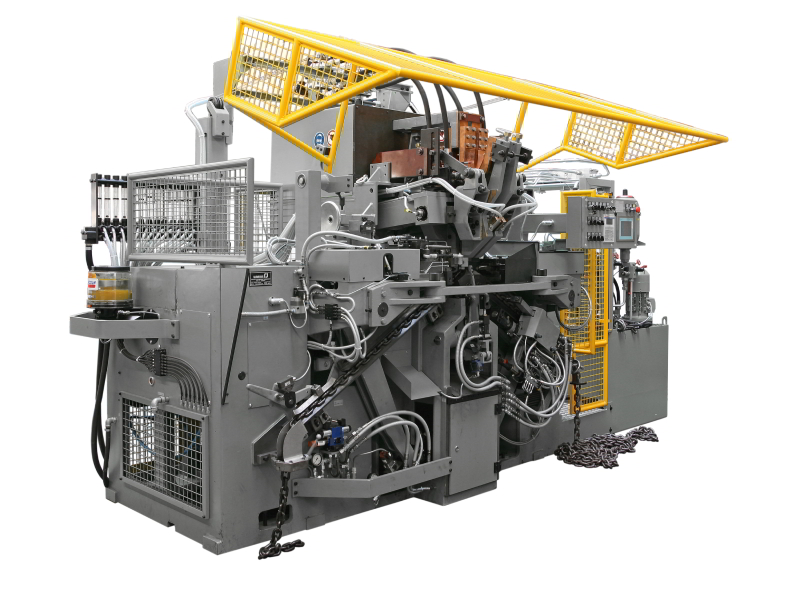

| KEH 8 | |
|---|---|
| Wire diameter | |
| at max. 750 N/mm² | 13 - 20 mm |
| at max. 500 N/mm² | 13 - 20 mm |
| Inside length of links (pitch) | 32 - 130 mm |
| Output, chain links | 27 - 14 pcs./min |
Images
Videos
Loading the player ...
Downloads
Benefits KSH Series
- Robust machine design for the production of high-strength chains / mining chains over a long period of time
- Welding control has many set-up parameters in order to achieve a good weld
- Complete deburring of welding bead
Types
| KSH 402D | |
|---|---|
| Wire diameter | 14 - 26 mm |
| Bending pitch, max | 100 mm |
| Outside bending width, max | 110 mm |
| Output, chain links | 3.2 - 6 pcs./min |
| KSH 502D | |
|---|---|
| Wire diameter | 18 - 34 mm |
| Bending pitch, max | 150 mm |
| Outside bending width, max | 145 mm |
| Output, chain links | 2.2 - 4.5 pcs./min |

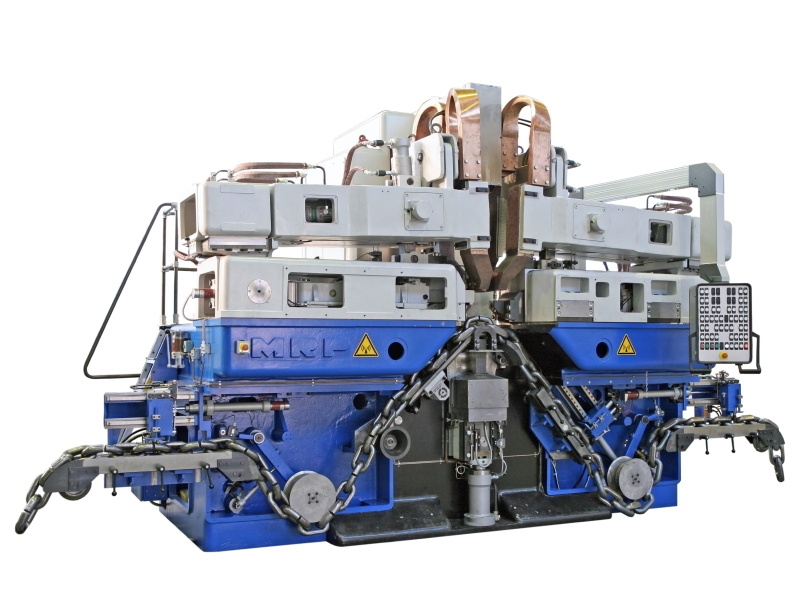

| KSH 602D | |
|---|---|
| Wire diameter | 26 - 48 mm |
| Bending pitch, max | 172 mm |
| Outside bending width, max | 175 mm |
| Output, chain links | 3.4 - 1 pcs./min |
| KSH 602D-52mm | |
|---|---|
| Wire diameter | 34 - 52 mm |
| Bending pitch, max | 190 mm |
| Outside bending width, max | 205 mm / 175 mm |
| Output, chain links | 2.6 - 0.4 pcs./min |
Images
Downloads
Benefits KSF
- Robust machine design for the production of high-strength chains / mining chains over a long period of time
- Welding control has many set-up parameters in order to achieve a good weld
- Complete deburring of welding bead
Types

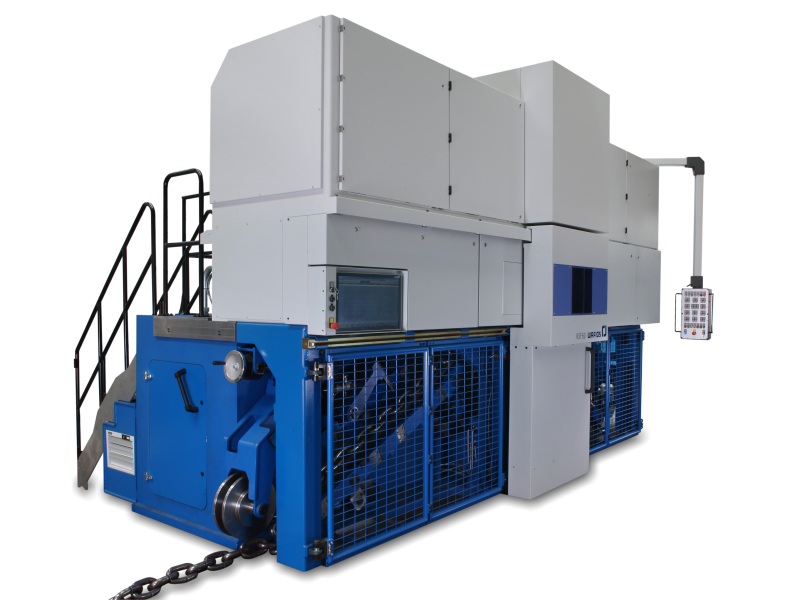

| KSF 60 | |
|---|---|
| Wire diameter | 34 - 60 mm round |
| Bending pitch, max | 220 mm |
| Outside bending width, max | 3,5 x d (welded) |
| Output, chain links | 0.6 - 2.3 pcs./min |
Images
Videos
Loading the player ...
Downloads
